In Stock

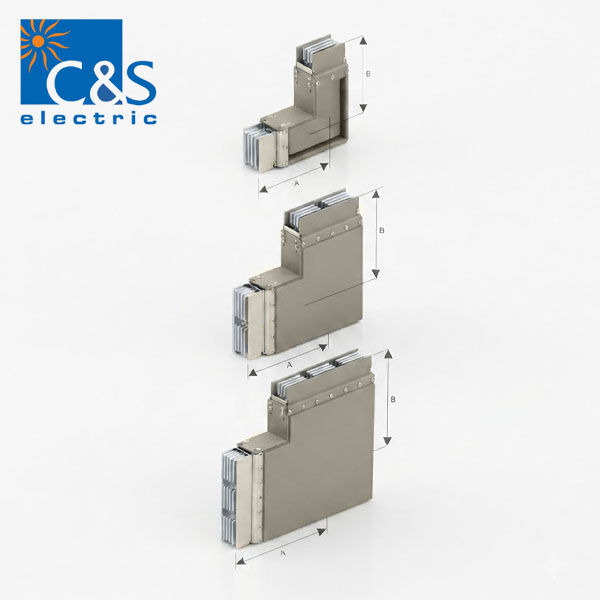

Offset Edge Elbow
POR
- Conductor : Copper / Aluminium
- Current Rate : 630A – 7000A (Copper), 400A – 5000A (Aluminium)
- Voltage Rate : Up to 1000V AC
- Frequency : 50 / 60 Hz
- Protection : IP55 (Standard), IP65 (On Request)
- Standard Size :
- Aluminium 400A–2000A / Copper 630A–2500A
- Minimum : 500 × 200 × 500 mm
- Standard : 500 × 500 × 500 mm
- Maximum : 500 × 1000 × 500 mm
- Aluminium 2250A–4000A / Copper 3200A–5000A
- Minimum : 500 × 200 × 500 mm
- Standard : 500 × 500 × 500 mm
- Maximum : 500 × 1000 × 500 mm
- Aluminium 4500A–5000A / Copper 6300A–7000A
- Minimum : 500 × 200 × 500 mm
- Standard : 500 × 500 × 500 mm
- Maximum : 500 × 1000 × 500 mm
- Phase : 3 Phase
- Pole : 3P / 3P+N / 4P / 5P
- Brand : C&S Electric
- Origin : India
